8312 Invensys Triconex Power Module

Detail produk:

Place of Origin:	USA
Nama merek:	Invensys Triconex
Sertifikasi:	COC
Model Number:	8312

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 Piece
Harga:	inquiry
Packaging Details:	original
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Kontak

Detil Deskripsi produk

Name:	8312 Invensys Triconex Power Module	Model:	8312
Package:	STANDARD	Warranty:	12 months
Gross Weight:	2.2 lbs / 35.2 oz / 1kg	Packing Size:	7" x 7" x 4" (18 cm x 18 cm x 10 cm)
Lead time:	1~3 Days	Quality:	100%Brand
Product name:	Power Module	Stock:	Available

8312 Invensys Triconex Power Module

Product Details:

Brand Name	Invensys Triconex
Model	8312
Catalog	TMR architecture
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$1200
Warranty	12 months
Lead time	3-5 work days

Description:

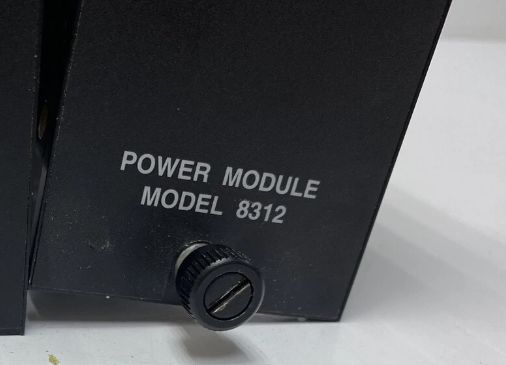

Each Tricon chassis is equipped with two power modules—either one is fully capable of running the Tricon at full load and rated temperature. Each power module can be replaced online. The power modules, located on the left side of the chassis, convert line power to DC power appropriate for all Tricon modules. Terminal strips for system grounding, incoming power and hardwired alarms are located on the lower left corner of the backplane. Incoming power should be rated for a minimum of 240 watts per power supply. The power module alarm contacts are actuated when:

• A module is missing from the system

• The hardware configuration conflicts with the control program’s logical configuration

• A module fails

• A main processor detects a system fault

• Primary power to a power module fails

• A power module has a “Low Battery” or “Over Temperature” warning
