Name: GE IS220PRTDH1A Resistance Temperature Device Input Module I/O pack
Brand: Joyoung International Trading Co.,Ltd
SKU: IS220PRTDH1A
Price: 3500 USD
Availability: InStock

Rumah Produk GE Fanuc PLC

GE IS220PRTDH1A Resistance Temperature Device Input Module I/O pack

Detail produk:

Tempat asal:	Amerika Serikat
Nama merek:	GE
Sertifikasi:	CO
Nomor model:	IS220PRTDH1A

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 pc
Harga:	$3500
Kemasan rincian:	6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm)
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	10 pcs

Kontak

Detil Deskripsi produk

Nama merek:	GE	Model:	IS220PRTDH1A
Kondisi:	Baru	Berat Kotor/Berat Pengiriman:	2.2 lbs / 35.2 oz / 1kg
Ukuran pengemasan:	6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm)	Negara Asal/Negara Asal:	Amerika Serikat (AS)
Waktu tunggu:	Dalam stok	Pelabuhan Pengiriman:	Xiamen
Pembayaran:	T/t	Harga penjualan:	PERTANYAAN
Warna:	Tergantung pada materi	Jaminan:	12 bulan
Waktu tunggu:	5-8 hari kerja	Mitra kurir:	DHL, UPS, TNT, FedEx dan EMS

GE IS220PRTDH1A Resistance Temperature Device Input Module I/O pack

Product Details:

Brand Name	GE
Model	IS220PRTDH1A
Catalog	Mark VI
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$3500
Warranty	12 months
Lead time	3-5 work days

Additional Information:

N/M

Description:

The GE IS220PRTDH1A is a Resistance Temperature Device Input Module manufactured and designed by General Electric as part of the Mark VIe Series used in distributed control systems. An RTD input terminal board and one or more I/O Ethernet networks are connected electrically by the Resistance Temperature Device (RTD) Input (PRTD) pack.

An acquisition board dedicated to the thermocouple input function is included in the pack, along with a processor board that is shared by all Mark VIe distributed I/O packs. Up to eight RTD inputs can be supported by the I/O pack, while the TRTD terminal boards can support up to sixteen RTD inputs. A DC-37 pin connector that links directly to the terminal board connector for the pack, as well as a three-pin power input, are used for input. There are two RJ45 Ethernet connectors for the output. Indicator LEDs are used to display visual diagnostics.

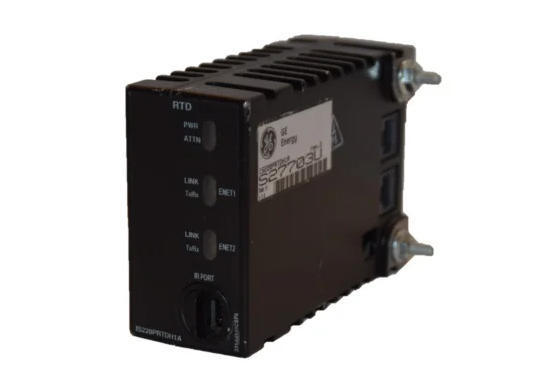

GE IS220PRTDH1A Resistance Temperature Device Input Module I/O pack 0
