Name: GE IS200TBAIH1C Analog Input Terminal Board with 24 V DC Power and 12 Channels for Mark VI Series
Brand: Joyoung International Trading Co.,Ltd
SKU: IS200TBAIH1C
Price: 1200 USD
Availability: InStock

Rumah Produk GE Fanuc PLC

GE IS200TBAIH1C Analog Input Terminal Board with 24 V DC Power and 12 Channels for Mark VI Series

Detail produk:

Tempat asal:	Amerika Serikat
Nama merek:	GE
Sertifikasi:	CO
Nomor model:	IS200TBAIH1C

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	$1200
Kemasan rincian:	6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm)
Waktu pengiriman:	5-8 hari kerja
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	10 pcs

Kontak

Detil Deskripsi produk

Nama merek:	GE	Model:	IS200TBAIH1C
Kondisi:	Baru	Berat Kotor/Berat Pengiriman:	2.2 lbs / 35.2 oz / 1kg
Ukuran pengemasan:	6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm)	Negara Asal/Negara Asal:	Amerika Serikat (AS)
Waktu Pimpin:	Tersedia	Pelabuhan Pengiriman:	Xiamen
Pembayaran:	T/T	Harga penjualan:	PERTANYAAN
Warna:	Tergantung pada materi	Jaminan:	12 bulan
Waktu Pimpin:	5-8 hari kerja	Mitra kurir:	DHL, UPS, TNT, FedEx dan EMS
Menyoroti:	24 V DC Power Terminal Board , 12 Channels Analog Input Terminal Board , Analog Input GE Mark VI Series

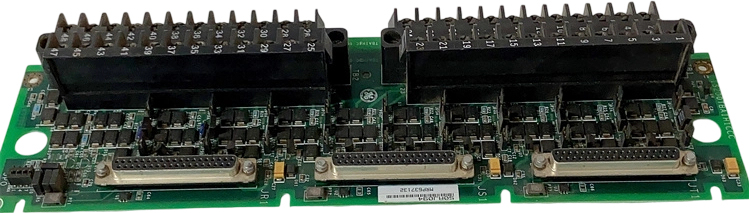

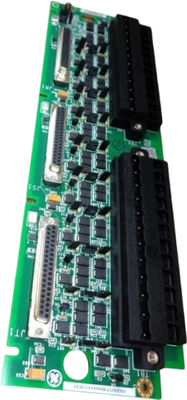

IS200TBAIH1C GE Analog Input Terminal Board A 24 V DC Power 12 Number Of Channels

The GE IS200TBAIH1C is an Analog Input Terminal Board manufactured and designed by General Electric as part of the Mark VI Series used in gas turbine control systems.

Product Specifications

Brand Name	GE
Model	IS200TBAIH1C
Catalog	Mark VI
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$1200
Warranty	12 months
Lead time	3-5 work days

Technical Features

Supports two outputs and ten analog inputs
Compatible with two-wire, three-wire, four-wire, or externally powered transmitters
Configurable for 0-20 mA or 0-200 mA current outputs
Includes noise suppression circuitry for surge and high frequency noise protection
Provides 24 V DC power source for all transducers
Input selection between current and voltage via jumpers
One output circuit configurable for 4-20 mA or 0-200 mA
Suitable for TMR (Triple Modular Redundant) applications
Features unique ID device for hardware compatibility verification

Additional Documentation

GEI-100165	GEDS Standard Message Format (GSM)
GFK-1396	CIMPLICITY HMI CimEdit Operation Manual
GEH-6408	Control System Toolbox for Configuring the Trend Recorder

Product Image
