Honeywell Vertical Bus Driver VBD 24Vdc 110mA for Redundant Central Parts Configuration

10001/R/1 modules are used in configurations with redundant Central Parts and non-redundant I/O. The relay on the 10001/R/1 disconnects the VBD from the vertical bus in the event of a Central Part shutdown, triggered either by an on-board watchdog on the VBD or via software.

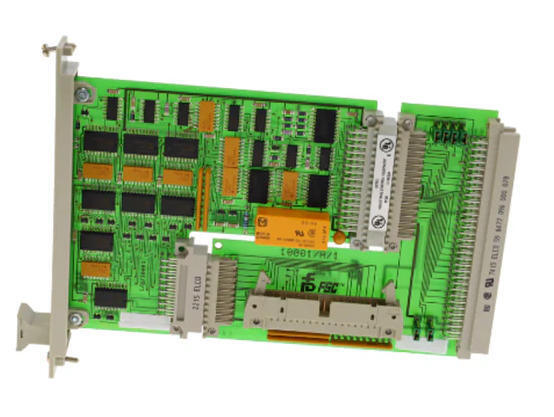

10001/R/1 modules consist of two parts: an electronic part (mainboard) and a wiring part (10001/A/1), as shown in Figure 3. The bolts on the 96-pin connector secure the 10001/A/1 part to the 19-inch rack, allowing the electronic part of the VBD to be replaced without disconnecting the vertical bus flat cable.

In the FSC system, the Central Part (CP) connects to the I/O level via vertical bus driver (VBD) modules located in the CP rack. A maximum of 14 VBDs can be installed per Central Part, each supporting up to 10 horizontal bus driver (HBD) modules. The maximum distance between a VBD and any I/O rack on the vertical bus is 5 m (16.4 ft). Table 1 lists which vertical bus drivers, including the 10001/R/1, can be used in different configurations.
